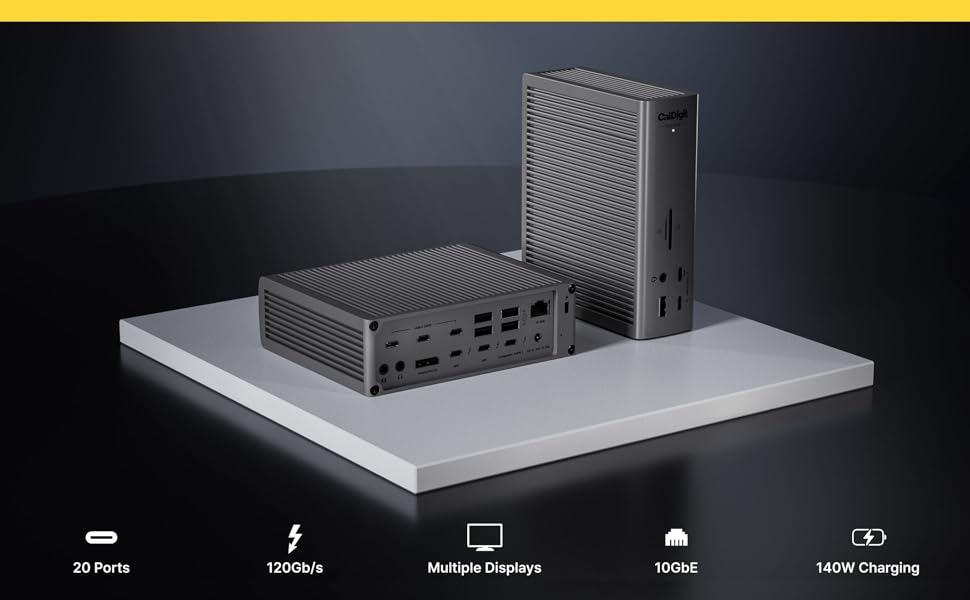

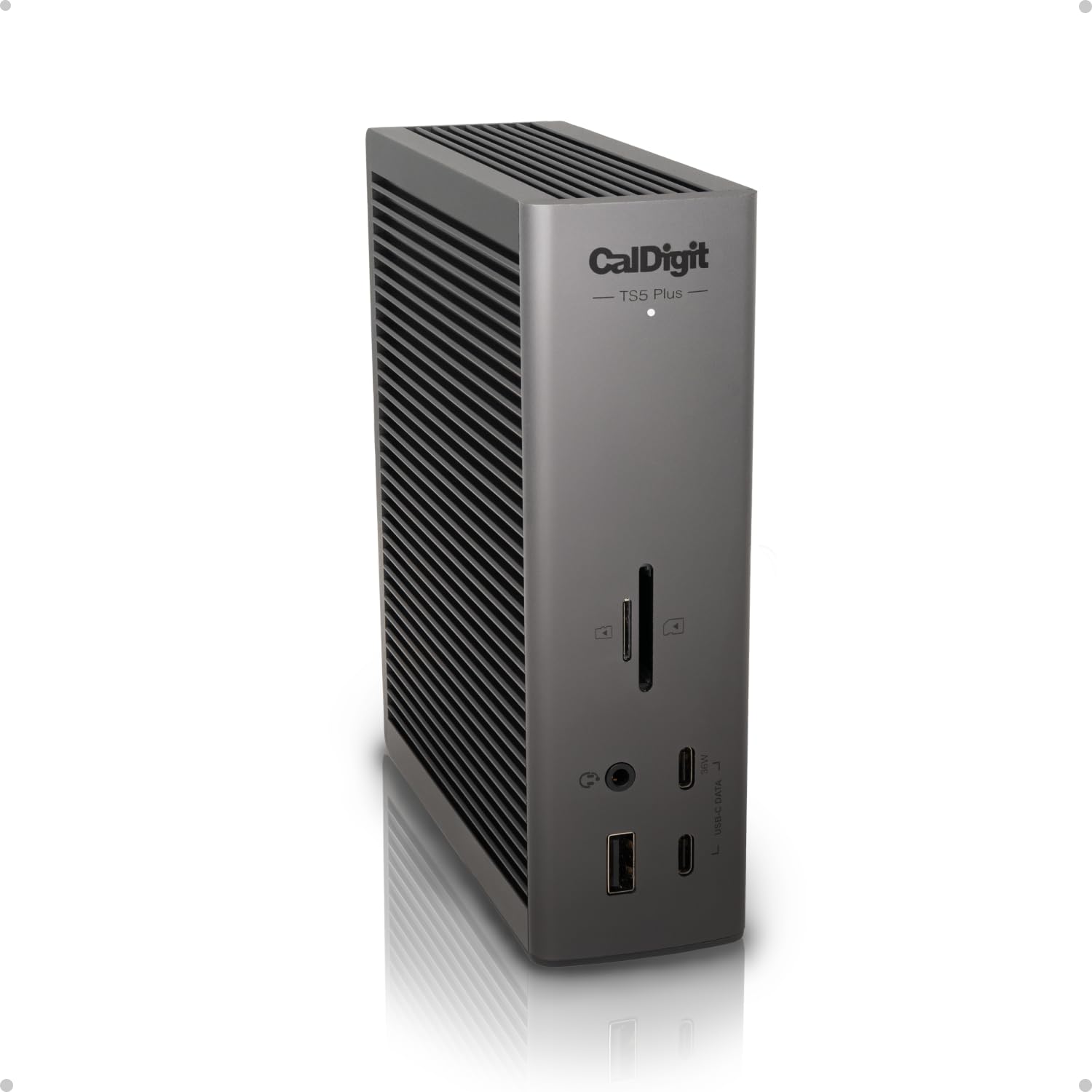

CALDIGIT TS5 Plus Thunderbolt 5 Dock - 20 Port 140W Charging
$116.39 USD
-
Free worldwide shipping
-
Free returns
-
Carbon neutral
-
Secure payments
Description for this item:
Pushing the Limits of Connectivity
Pushing the Limits of Connectivity

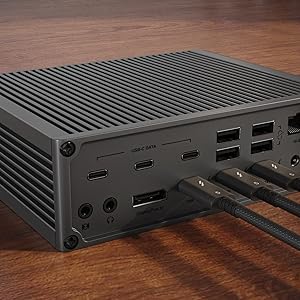

36W of Power for Accessories
The TS5 Plus supplies up to 140W of power, supporting high-performance laptops such as the 16â³ MacBook Pro with M3/M4 Pro or Max chips. It maintains a constant 140W to the host device, even when new devices are added. For lower-power devices, it smartly adjusts to supply only whatâs needed.
140W Power Delivery

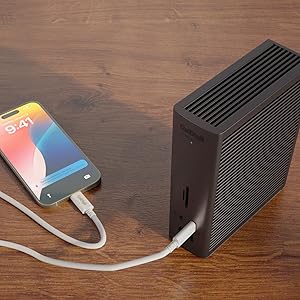

The TS5 Plus features a 36W front-facing USB-C post that supports even the most power-hungry USB-C devices. Both rear Thunderbolt 5 ports also offer 36W each, more than double the 15W from previous generation. This ensures fast charging for devices like the iPad Pro, which only requires 20W.

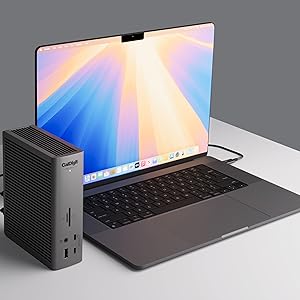

Thunderbolt 5
The TS5 Plus features an 80Gb/s bi-directional Thunderbolt 5 ports. The PCIe performance of the the Thunderbolt ports have been doubled from the previous generation to 64Gb/s PCIe 4.0. This is ideal for connecting high-performance SSDs or RAID devices, supporting transfer speeds up to 6,200MB/s.
Dual USB Controllers
At the time, the CalDigit TS4 was the first Thunderbolt 4 dock to include a 2.5GbE port, and with the TS5 Plus we are going 4x better by including a 10GbE port.*
Single Monitor
Single Monitor
* Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
About this item:

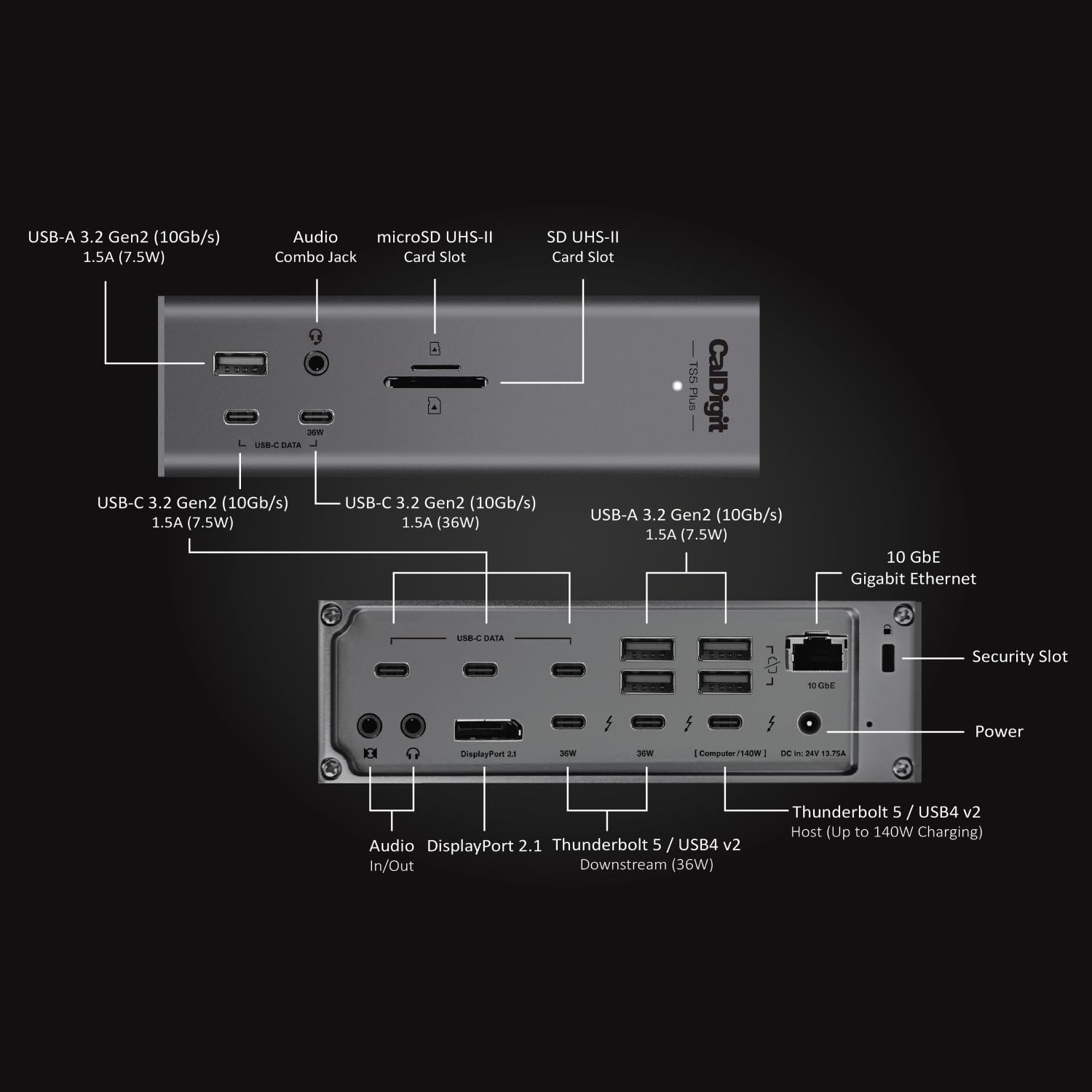

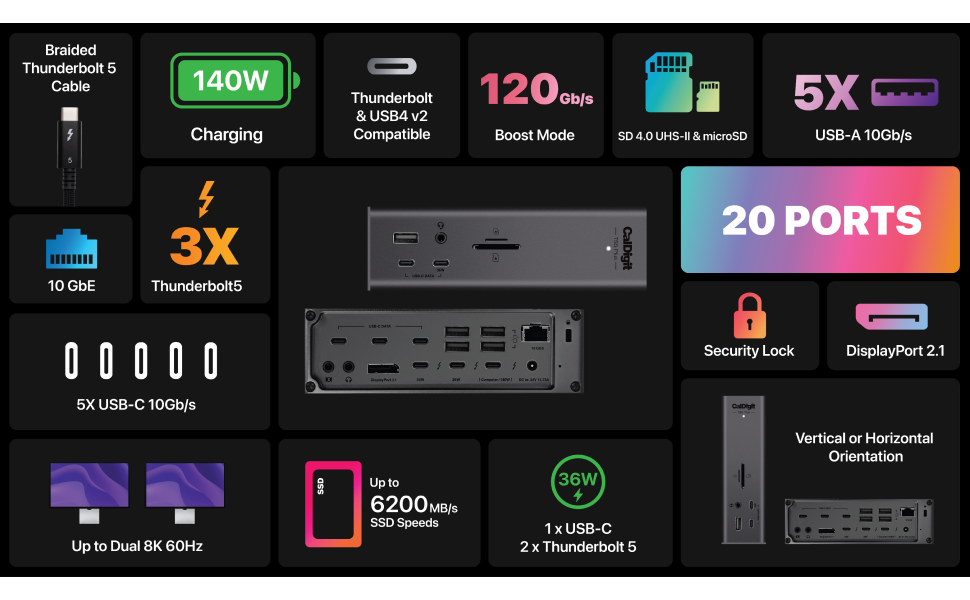

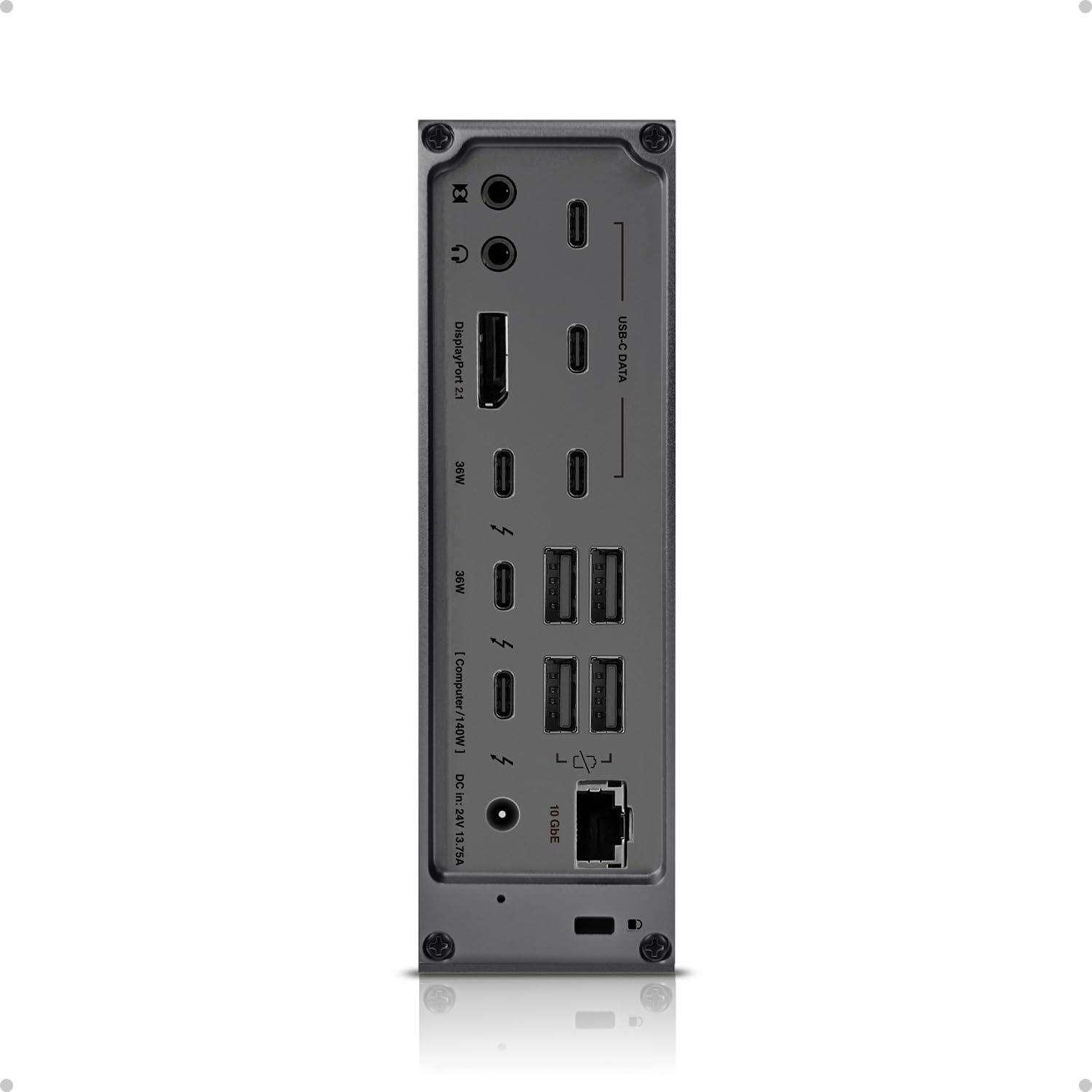

- 20 Ports of Extreme Connectivity - Featuring next-level connectivity, the TS5 Plus has more than enough ports for any workflow. The TS5 Plus includes 3x 80Gb/s Thunderbolt 5 ports, 5x USB-A 10Gb/s ports, 5x USB-C 10Gb/s ports, DisplayPort 2.1, SD 4.0 & microSD 4.0 UHS-II card readers, 10GbE, and 3x audio ports. Thunderbolt 5 supports 64Gb/s PCIe which is ideal for connecting ultra-fast Thunderbolt SSDs to the TS5 Plus.

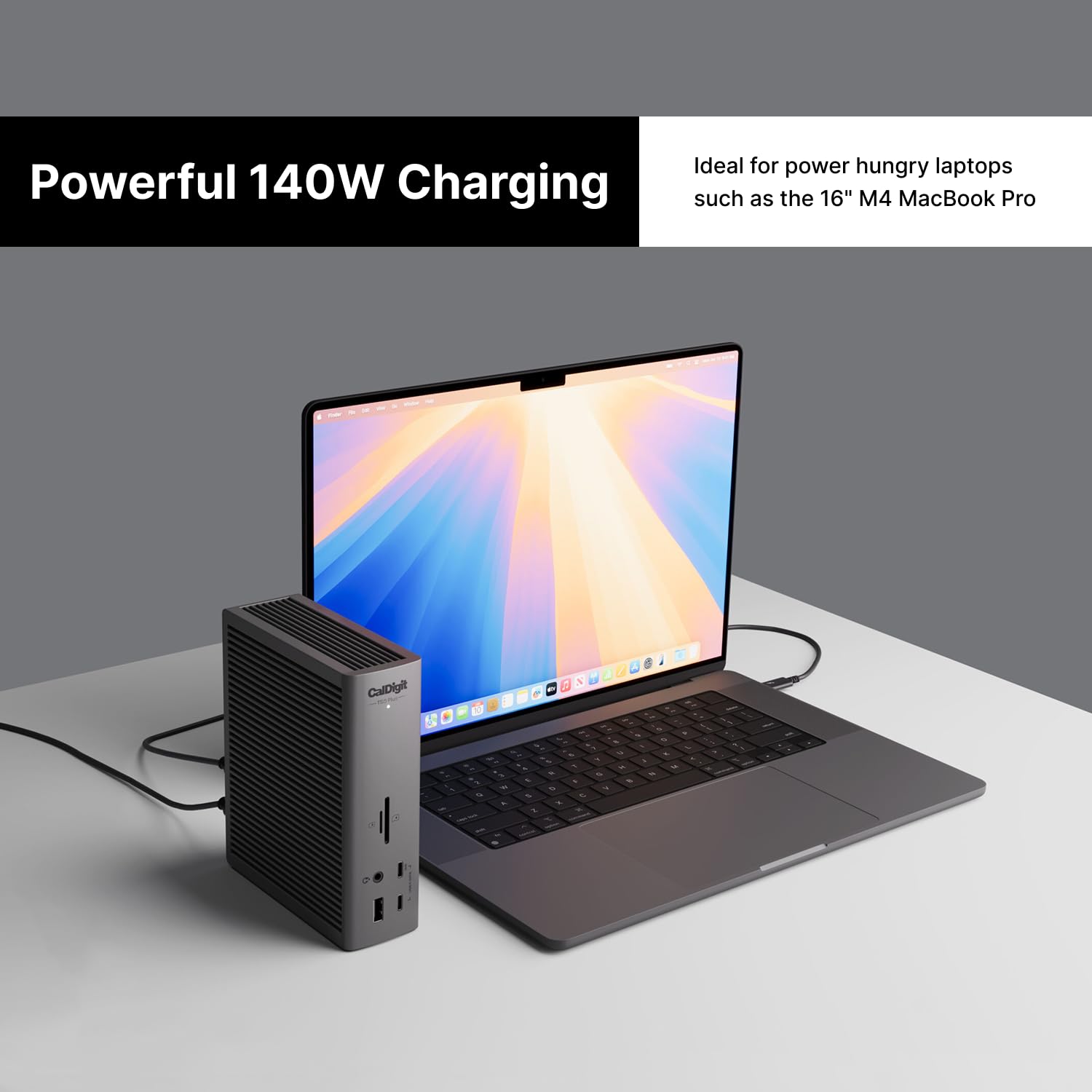

- More Power than Ever - The TS5 Plus host charging port provides up to 140W of dedicated power delivery. This makes it ideal for power hungry laptops such as the 16â M3/M4/M5 Pro and Max series MacBook Pro which charges at 140W. The TS5 Plus includes a 330W power supply that allows the dock to provide sustained power delivery at all times, not only for the host charging port, but for all of the remaining ports. In addition to all of this power, the downstream Thunderbolt 5 ports, and one of the front USB-C ports provide up to 36W of dedicated power delivery for charging accessories, enough power to charge a MacBook Air at full power!

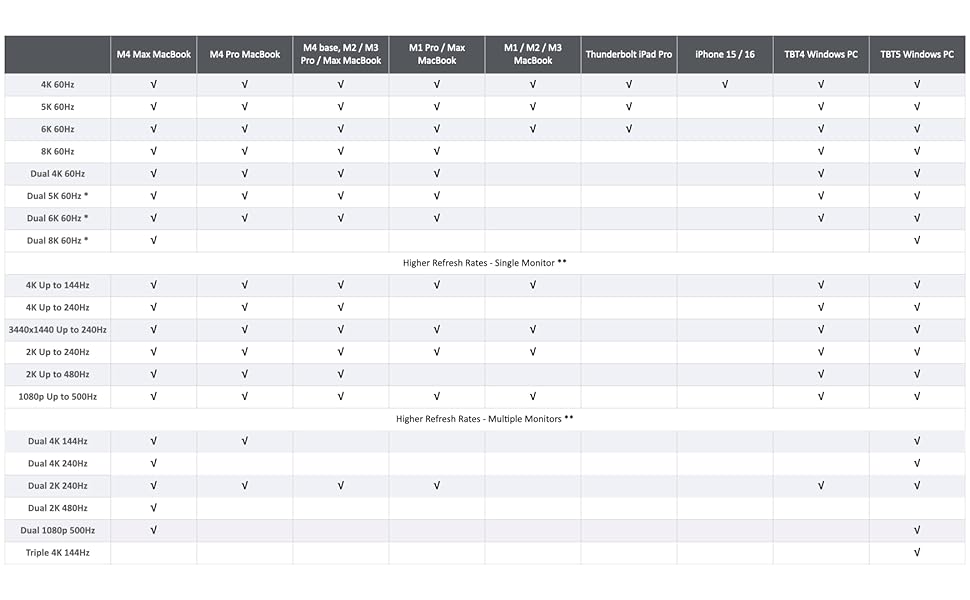

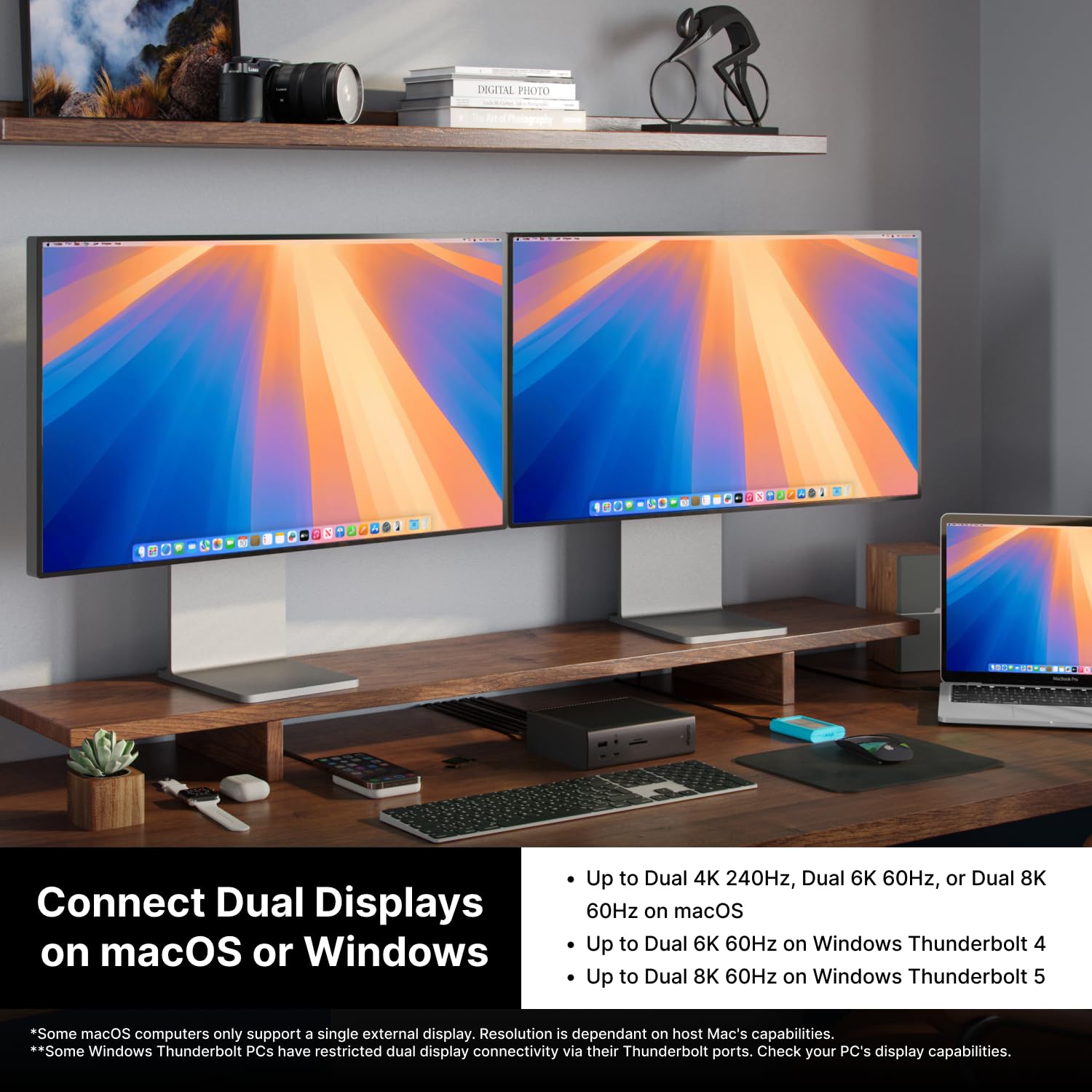

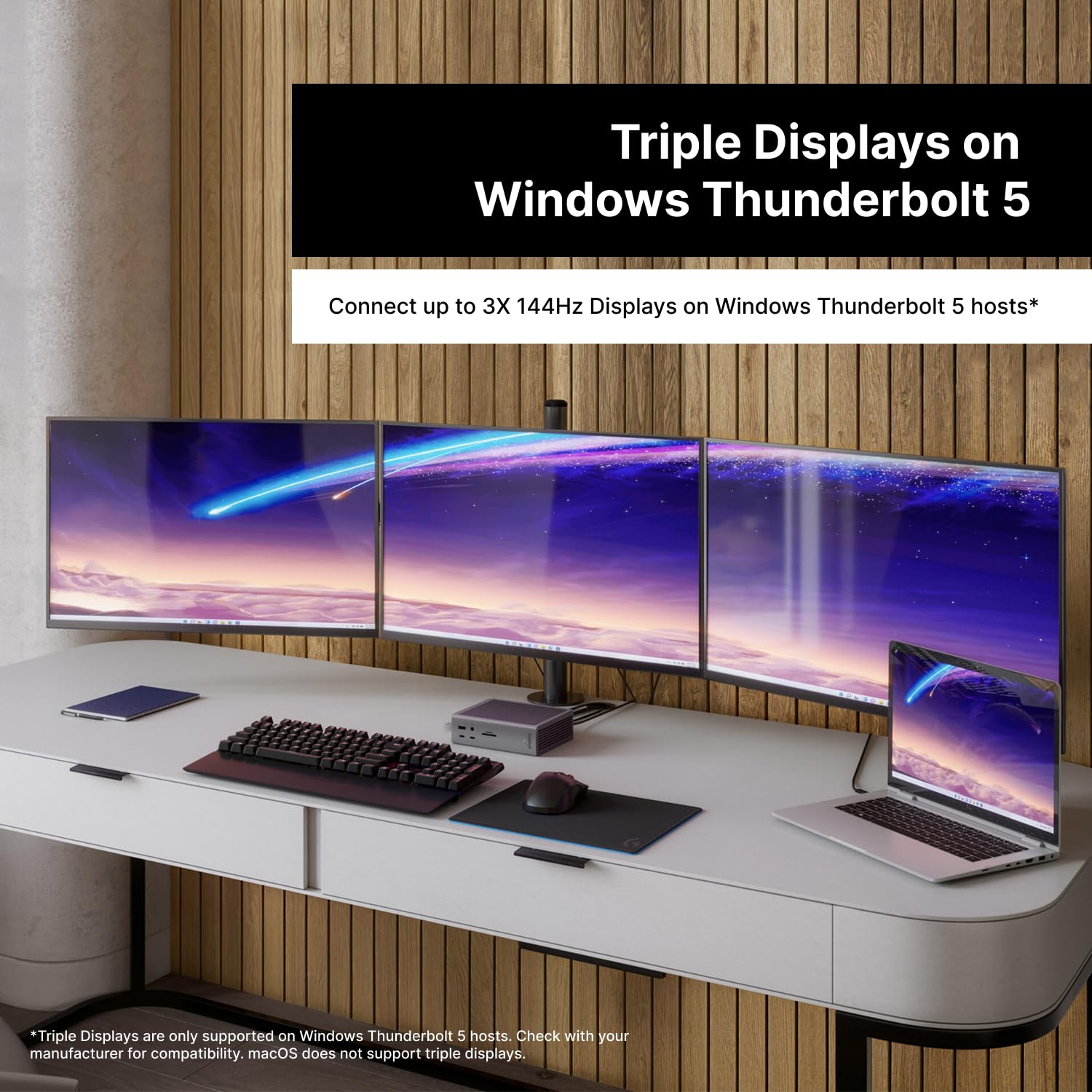

- Flexible Display Configurations - The TS5 Plus on macOS devices can connect up to Dual 6K 60Hz displays, or even Dual 8K 60Hz displays on Macs that support those resolutions. The TS5 Plus supports high-refresh rates at up to Dual 4K 240Hz. On Windows, the TS5 Plus supports up to dual 6K 60Hz on Thunderbolt 4 hosts, and up to Dual 8K 60Hz on Thunderbolt 5 hosts. Thunderbolt 5 Windows users can also connect up to Triple 4K 144Hz displays on supported Windows Thunderbolt 5 hosts (macOS does not support Triple displays).*Check with your manufacturer to see how many displays your computer supports.

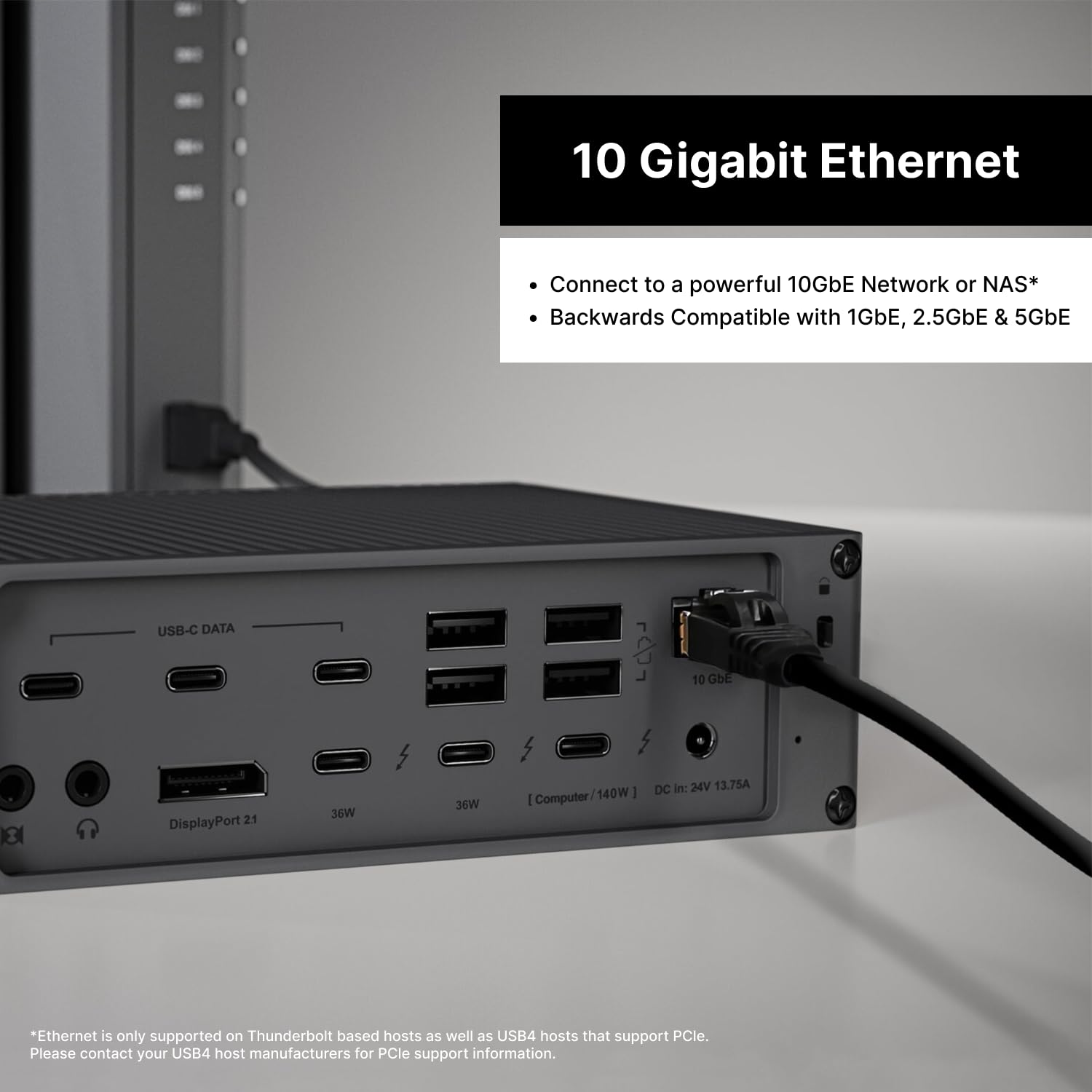

- 10 Gigabit Ethernet - The TS5 Plus seamlessly integrates powerful 10GbE workflows with ease. 10GbE is 10X faster than traditional 1GbE found on the majority of docking stations. Users can connect to ultra fast 10GbE networks in order to transfer files faster than ever, or connect to 10GbE equipped NAS storage devices. The 10GbE port is backwards compatible with 1GbE, 2.5GbE, and 5GbE. *Ethernet is only supported on Thunderbolt based hosts as well as USB4 hosts that support PCIe.

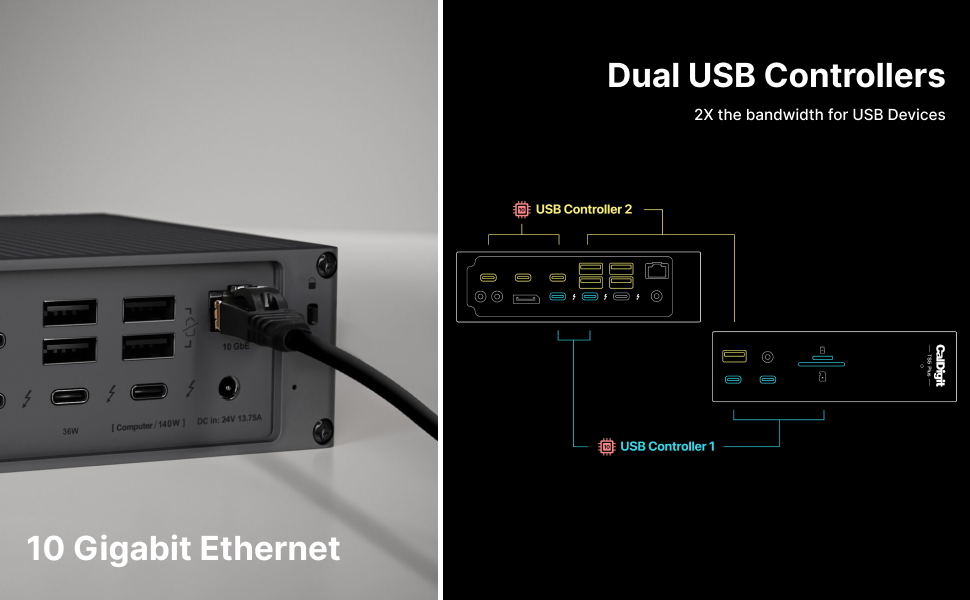

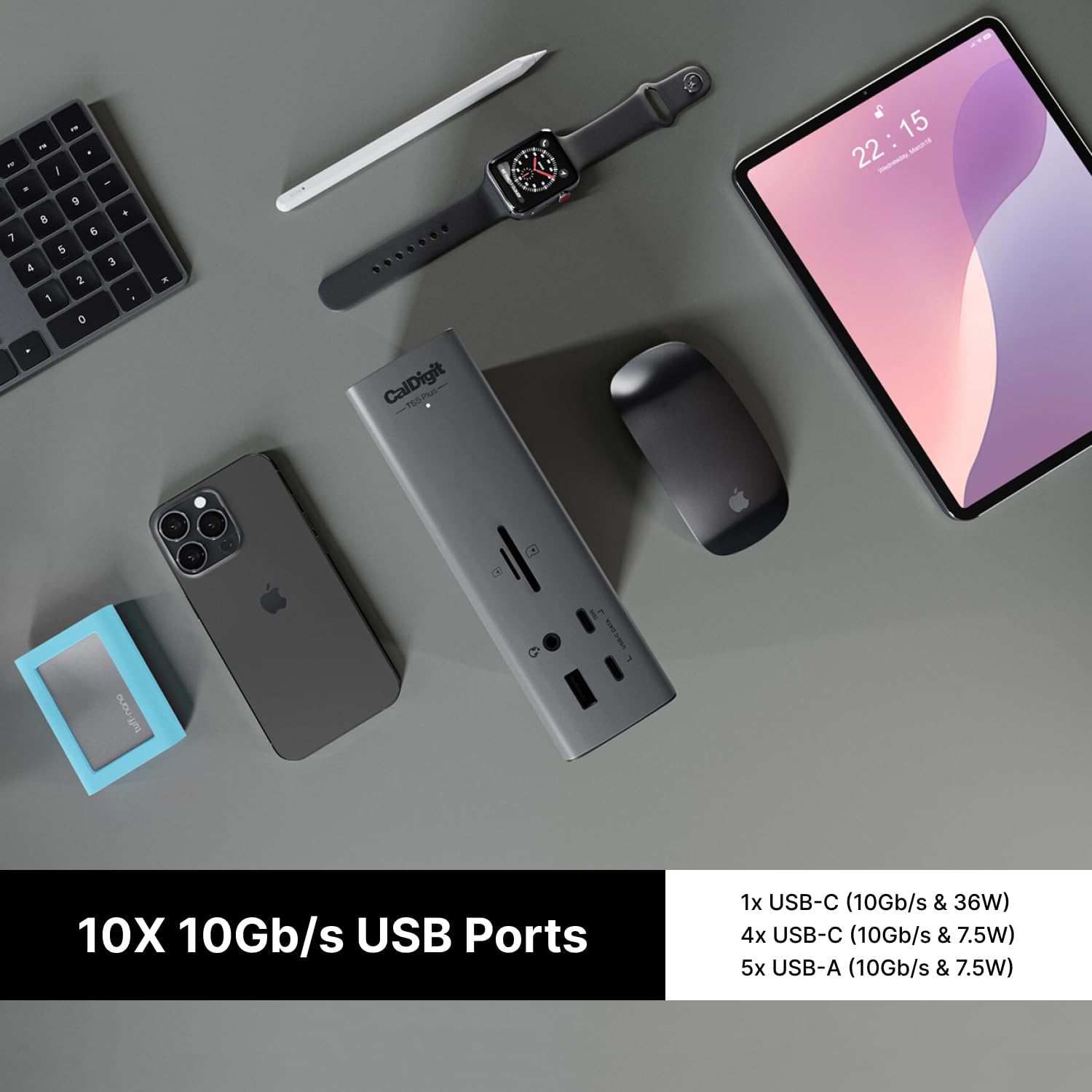

- Dual USB Controllers - A unique feature of the TS5 Plus is that it includes Dual USB Controllers. This means that the ports on the front of the dock have one 10Gb/s USB controller for all of the attached devices, and the rear ports have a second 10Gb/s controller for the devices on the back ports. This avoids any bottlenecks when multiple high speed USB devices are connected, and is an ideal feature to complement the total of 10x USB ports on the dock.
- Compatibility - The TS5 Plus is compatible with Thunderbolt and USB4 host devices. To get the maximum performance out of the TS5 Plus a Thunderbolt 5 (80Gb/s) or USB4 v2 (80Gb/s) host connection is required. Users on Thunderbolt 3, Thunderbolt 4, or USB4 hosts will see reduced functionality. The TS5 Plus also supports Thunderbolt based tablet devices. *The TS5 Plus does not support non-Thunderbolt or USB4 based host devices.
- Bandwidth Boost - A new feature of Thunderbolt 5 is the inclusion of Bandwidth Boost. This powerful function allows up to 120Gb/s performance to be allocated to the connected displays when bandwidth intensive monitors are connected. This is specifically ideal for users that intend on connecting displays with high-refresh rates at high resolutions.
